WMD form 306 plus is upgrade model, which design for large tube processing, max tube diameter upto 90mm.
WMD Form 306 plus – large tube forming

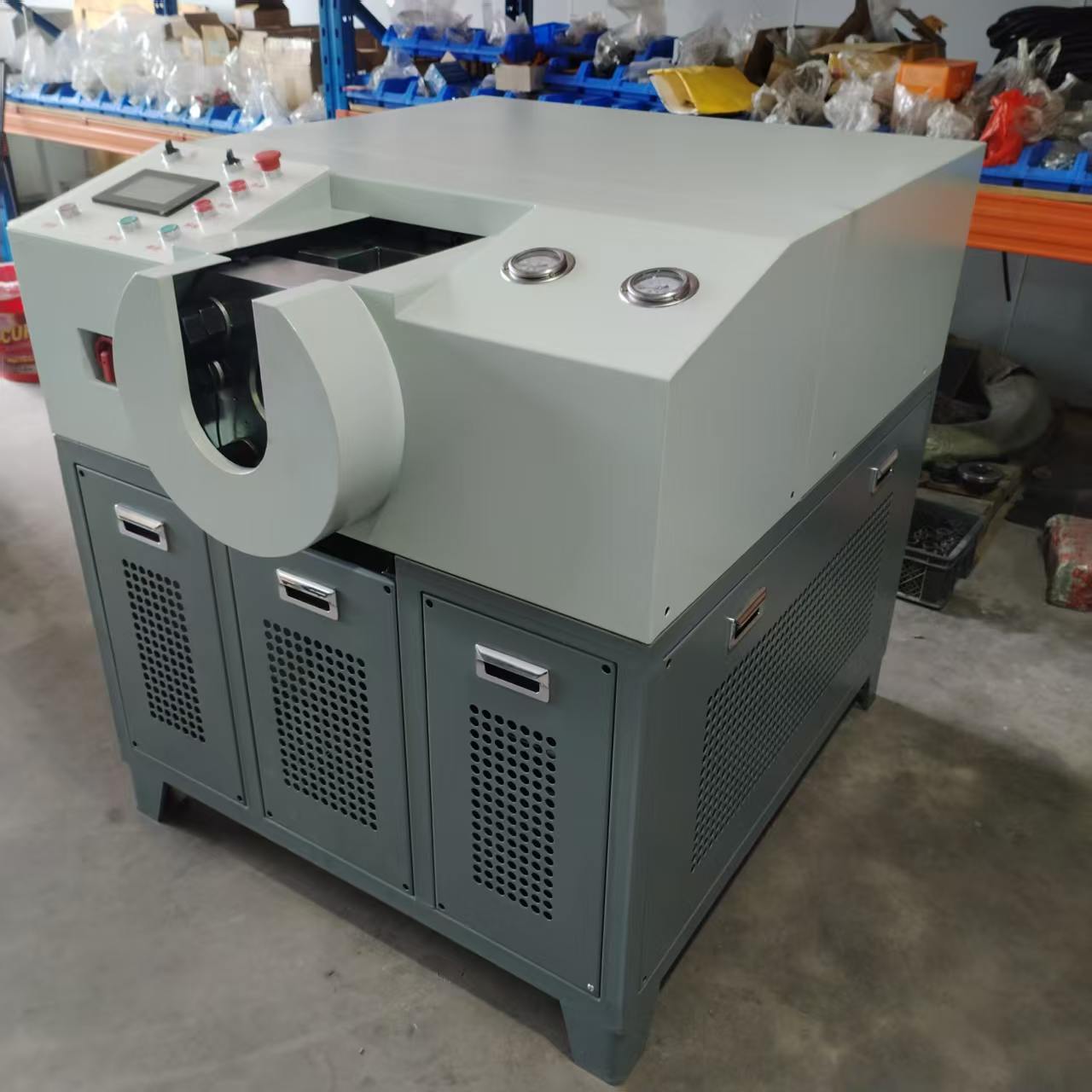

WMD form 306 plus is the upgrade model of the WMD FORM tube end forming machine, designed for large tube processing with a maximum tube diameter up to 90 mm.
The WMD FORM system forms the tube end in one operation and completes the connection with standard hydraulic fittings:
- One forming operation creates both sealing elements – the 24° conical metal sealing surface and the FKM seal ring groove – so the tube end needs no welding, no pre-assembly and no second process.
- The tube is clamped by a C-type lock ring and closed with a standard DIN nut, so the joint absorbs vibration and pressure shock instead of loosening under them.
- Tool-less change of forming head and clamping jaws, with automatic calibration of die and jig.
- Manual and automatic mode, with the working pressure adjusted to the tube size selected.
- IoT remote assistance and remote diagnosis, so a service question is answered from the machine’s own data.
Model 306 and 308 process tube outside diameter 6-42 mm in carbon steel and stainless steel; the 306 plus extends the range to large tube up to 90 mm. The tube size range, wall thickness limits, tooling part numbers and the working pressure of the formed joint per size are confirmed on receipt of your tube drawing – send it over and we will answer with the die and jaw set for your size.
