Hydraulic testing bench
Customized hydraulic testing bench, built to the customer’s test requirements.
- 15 kW electric motor
- Variable displacement piston pump
- 5-way hydraulic valve – electric, manual and remote control
- 500 L tank with air cooler
- High-pressure filter, inlet and outlet

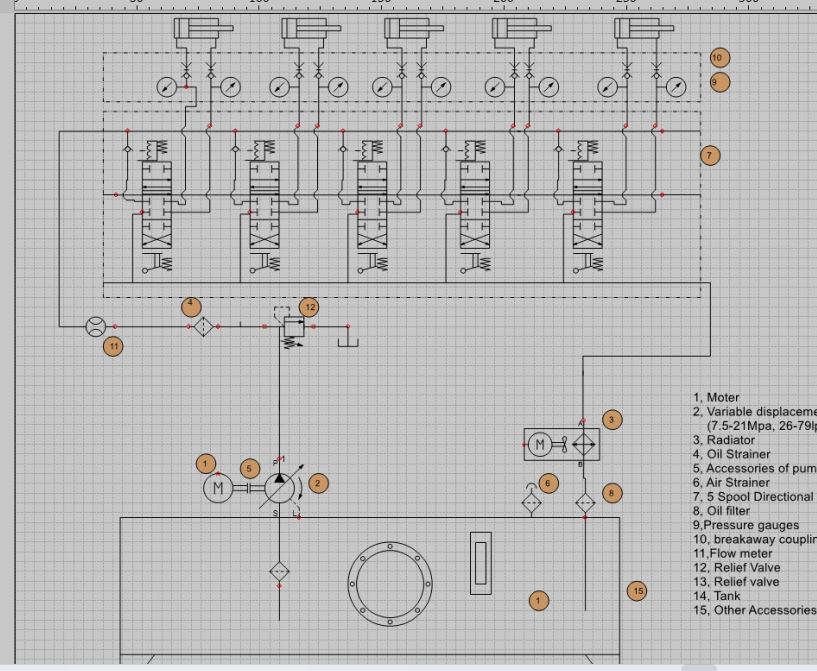

Hydraulic station: P/N 100X70X60-2-6-25_06_24, tank size: 1000X700X600, variable displacement piston pump, working hydraulic pressure 3.5-21 MPa, hydraulic flow 26-82 L/min, 380 V, 32 A, 15 kW-4, 5-way quick-connect coupling, one way electric and remote control.
- L 1 and L 2, is power light, the AC wiring sequence error when L 1 lighted, need to change the AC line sequence, swap 2 out of 3 live wires.
L 2 lighted, power is ready.
- L 3 running light,
- Button A and Button B, press down button A, Valve A working, press down Button B, valve B working, it was bend press down Button A and B same time.
- Button C is a self-lock button, the power off when Button C press down, and power on when Button C released
